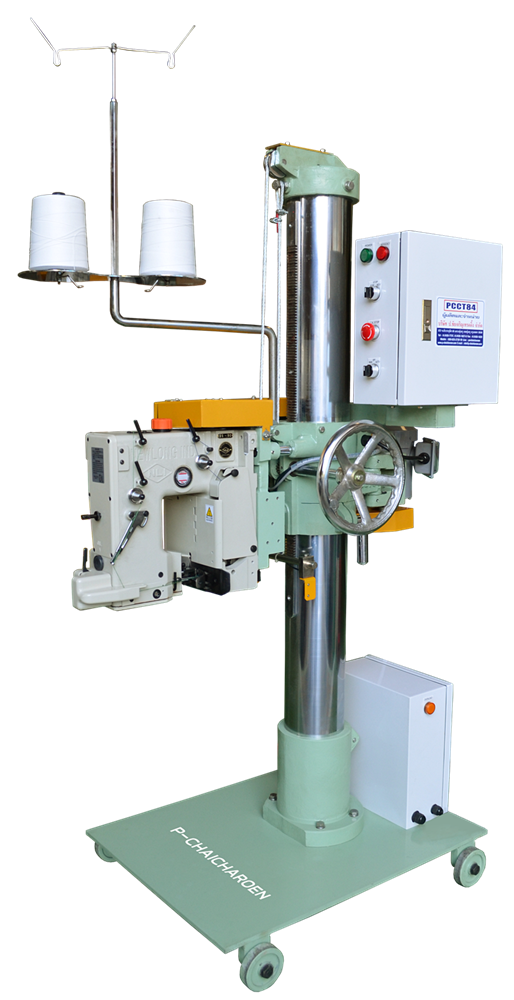

Model | A6-P2L |
---|---|
Capacity | 500 – 1,000 bags/hour (DS-6AC/WAC) 500 – 1,200 bags/hour (DS-9C/CW) |
Stitch Width | 7 - 10.5 mm. (Standard setting 10 mm.) |

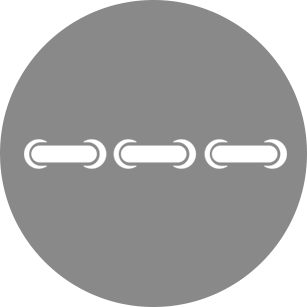

Stitch Type | Single Needle, Double thread chain stitch Double Needle, Double thread chain stitch |

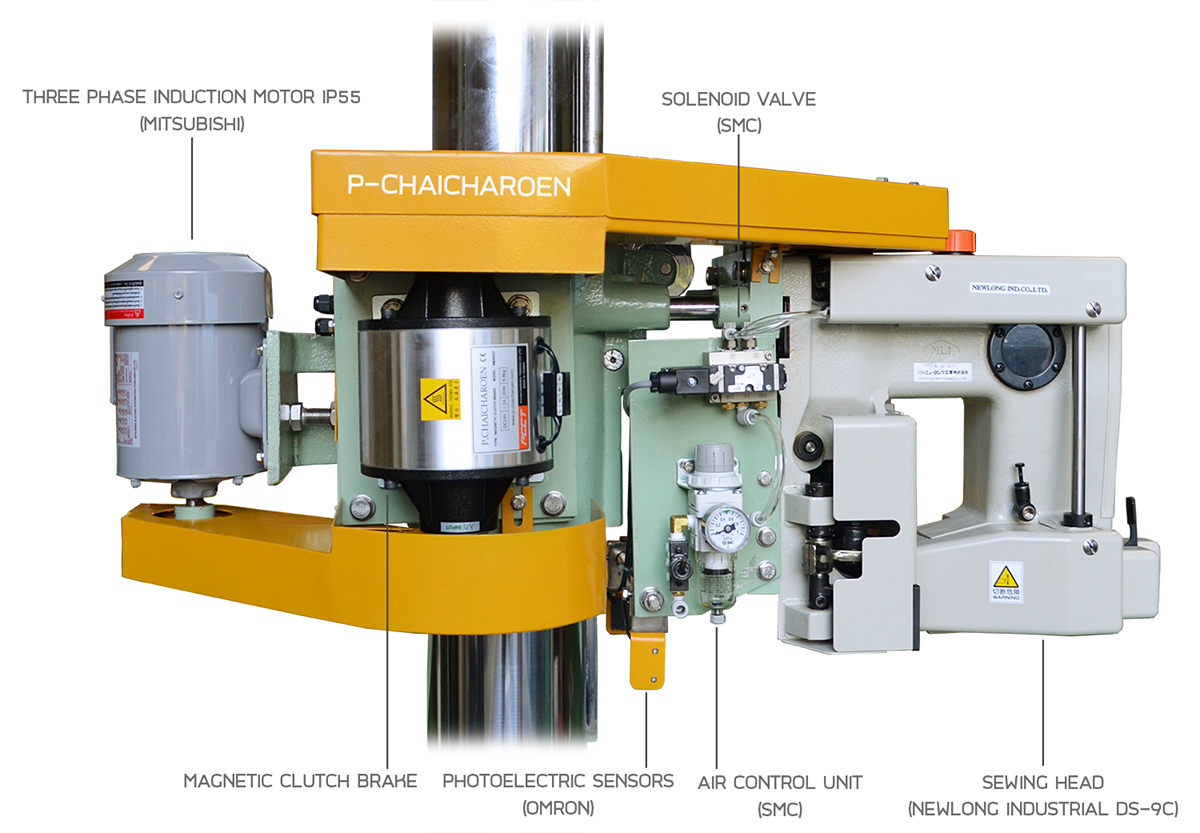

Cutter | Air cylinder |
Sewing Start | Photo cell switch |

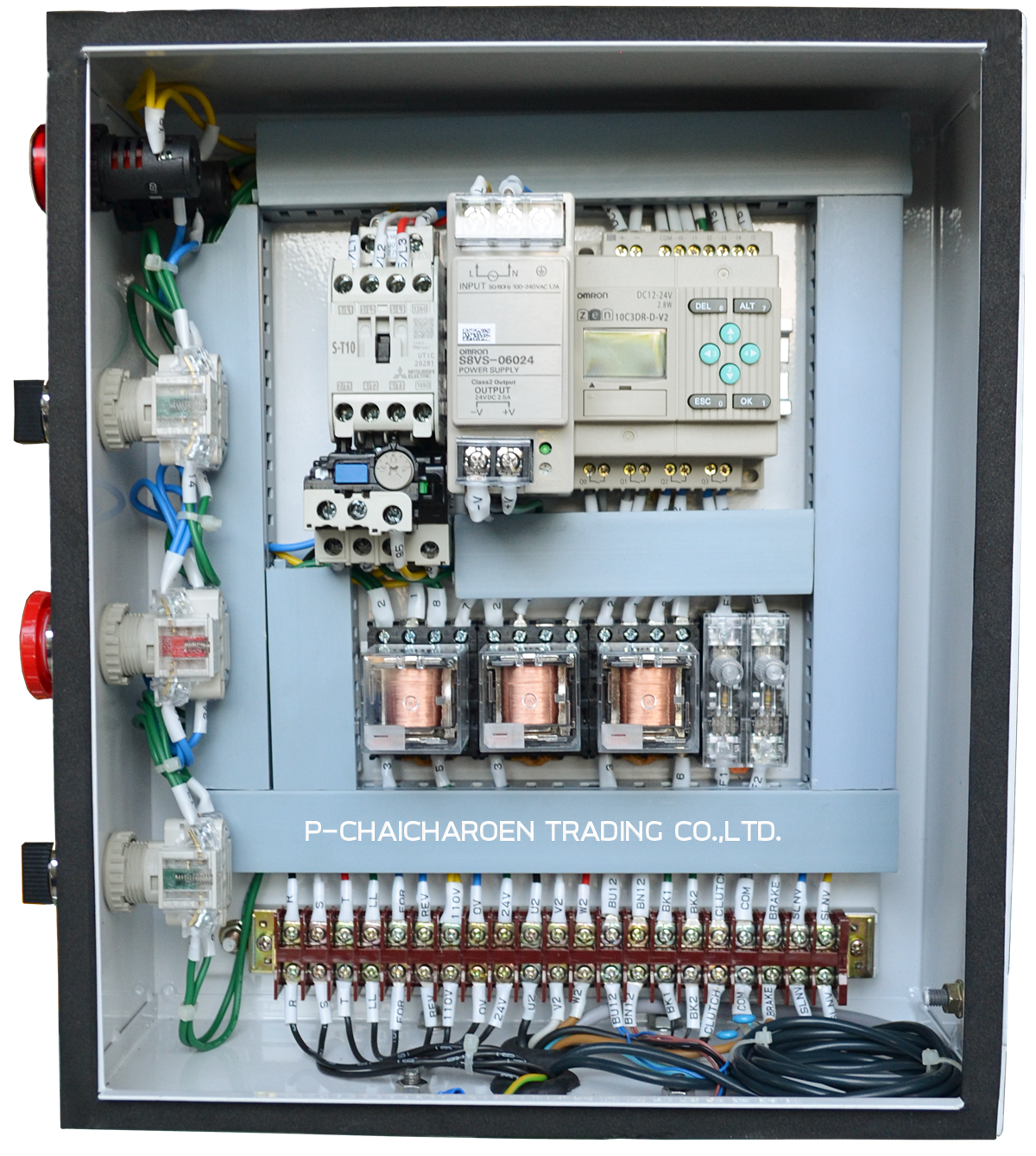

Control Method | By PLC, Relay (Omron) |
Lubrication | Manual oil feed, Automatic |
Drive System | Motor Clutch & Brake |
Drive Motor | 0.4 kw |
Power Supply | AC 380 V, 50 HZ, 3P |

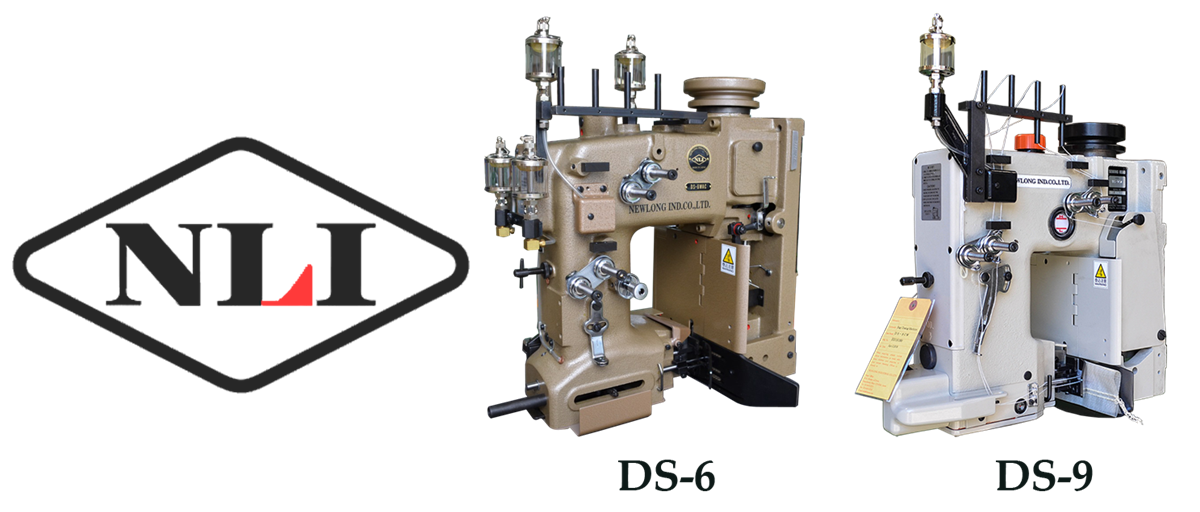

Sewing type | DS-6AC, DS-6WAC, DS-9C, DS-9CW |
